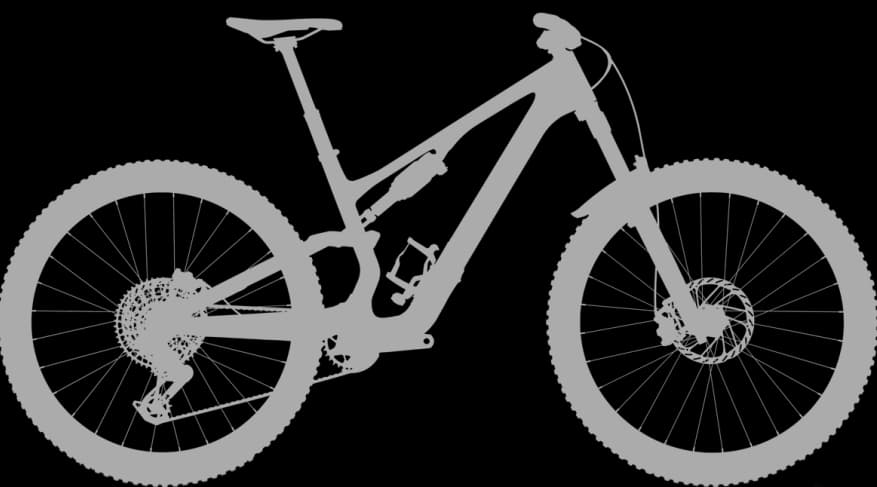

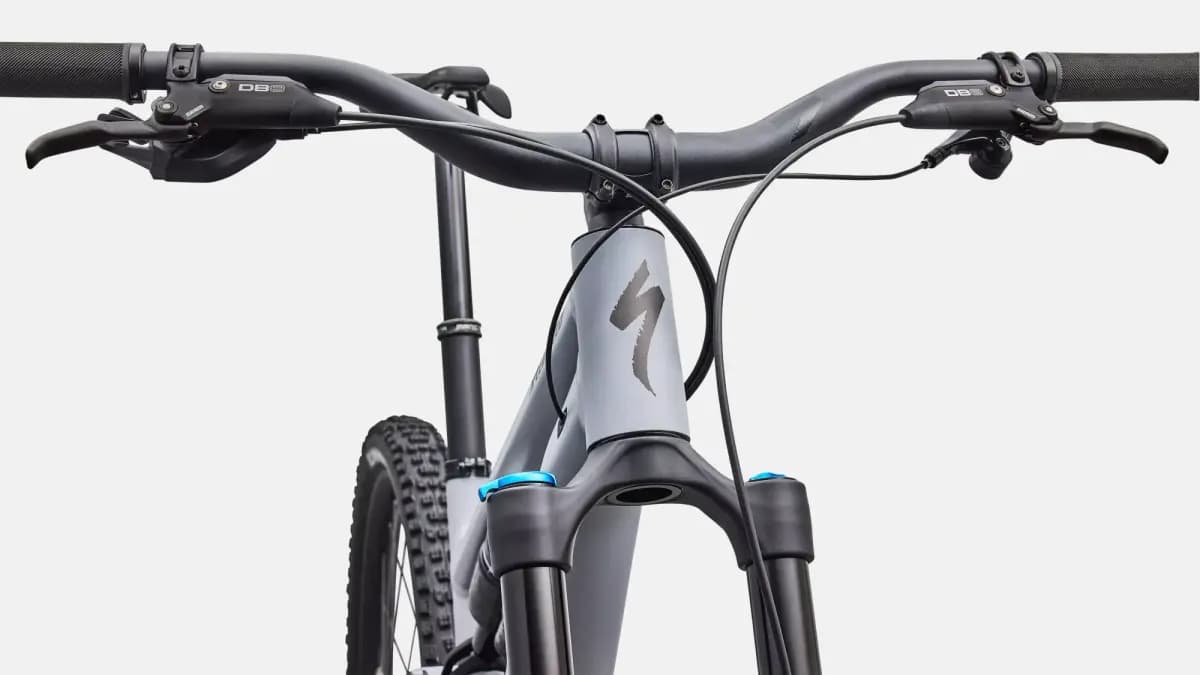

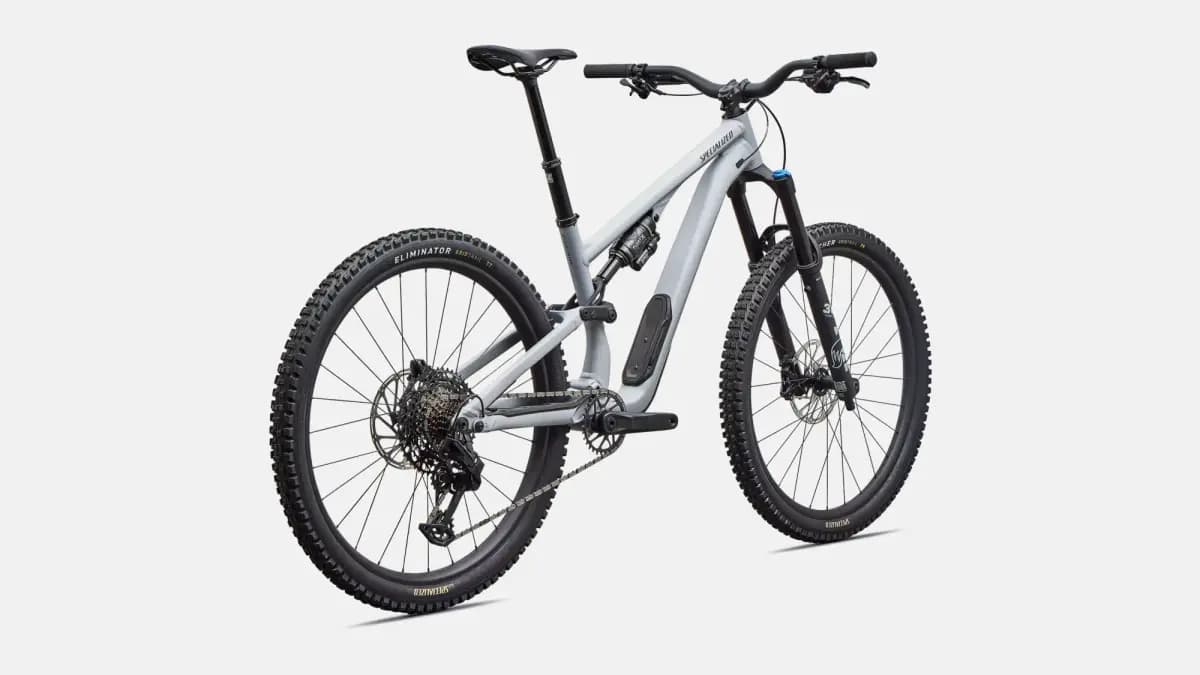

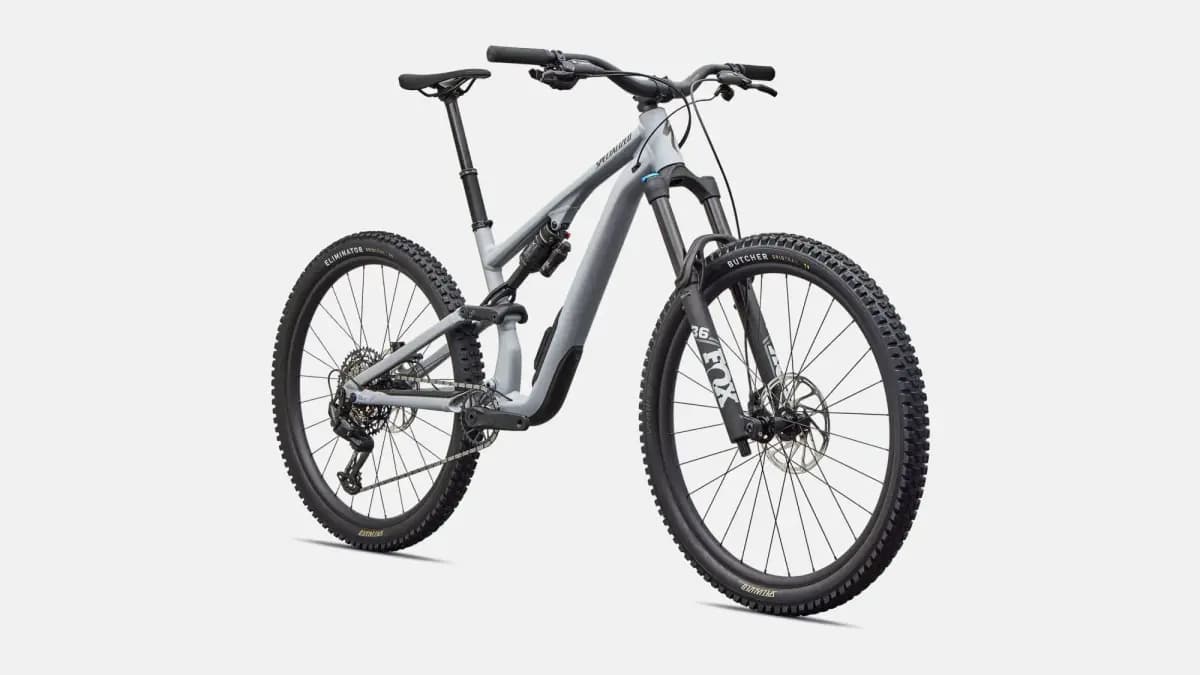

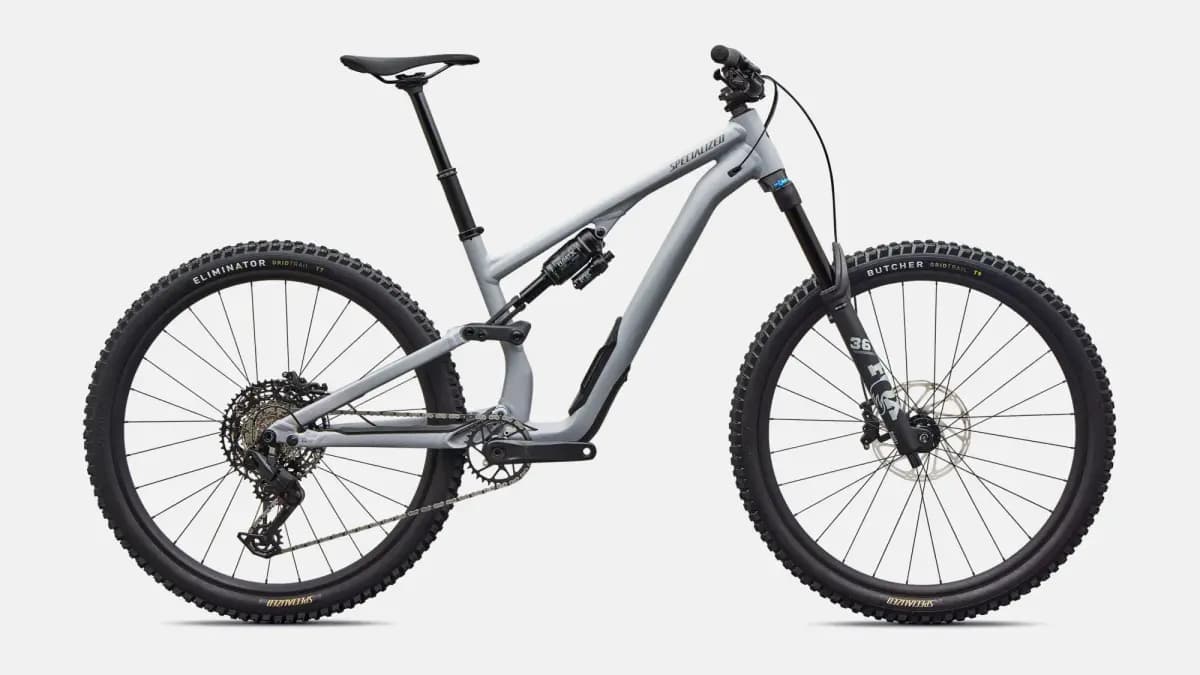

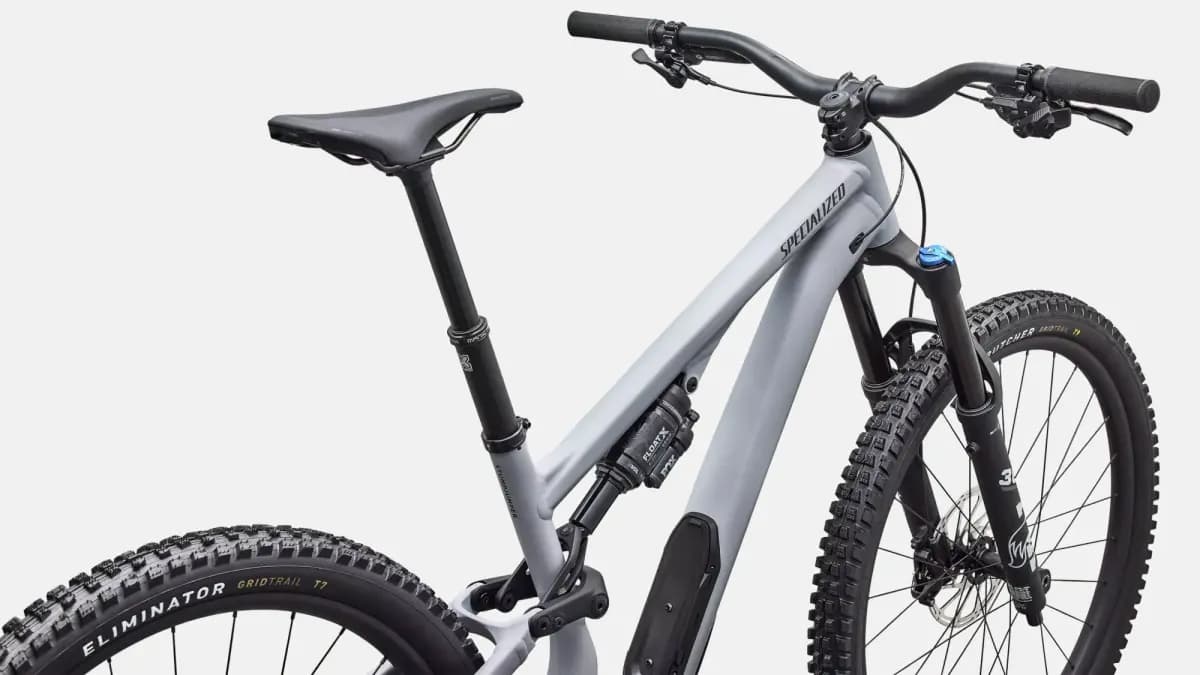

Specialized Stumpjumper 15 EVO Comp Alloy - SRAM Eagle 70, FOX Rhythm [M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, thr

About this item

• Frame: M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
• Seat Binder: Alloy, 38.6mm
• SWAT: SWAT 4.0 internal downtube storage
• Rear Shock: FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

The all-new Stumpjumper 15 EVO obliterates every trade-off in the trail game. It’s the ‘Bike of the Year’ winning Stumpy 15 you know, turned up to 11—with a longer-travel 160mm FOX fork, external reservoir FOX FLOAT X shock, and a slacker headtube for next-level capability. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. A heaping helping of personalization to make it perfect for the only rider who matters—you? Check, check, check.

Specifications

Frame

M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder

Alloy, 38.6mm

SWAT

SWAT 4.0 internal downtube storage

SKU

fd-fac0860a73d7

Rear Shock

FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm

Fork

FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset S1:150mm of travel, S2-S6:160mm of travel

SKU

fd-fac0860a73d7

Front Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor

Rear Brake

SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor

SKU

fd-fac0860a73d7

Shift Levers

SRAM Eagle 70

Rear Derailleur

SRAM Eagle 70 Transmission, 12-speed, easy shift under load

Cassette

SRAM 12-speed,10-52t

Chain

SRAM 70 Transmission 12-Speed Flattop Chain

Crankset

SRAM Eagle 70, 165/170mm, 55mm chainline, 32T

Bottom Bracket

SRAM DUB Threaded Wide

SKU

fd-fac0860a73d7

Rims

Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear Hub

Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 28h, HG Steel Fhb

Spokes

DT Swiss Elemental

Front Tire

Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4"

Rear Tire

Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4", S3- S6: 29x2.4"

Inner Tubes

Standard, Presta Valve

SKU

fd-fac0860a73d7

Stem

Alloy Trail Stem, 35mm bar bore

Handlebars

Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise

Grips

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

Seatpost

Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S5: 170, S4-S5: 200mm, S6: 230mm

SKU

fd-fac0860a73d7

Product ID

263530

SKU

fd-fac0860a73d7

Weight

16.69 kg (36 lb, 12.7 oz)

Weight Size

S4

SKU

fd-fac0860a73d7
