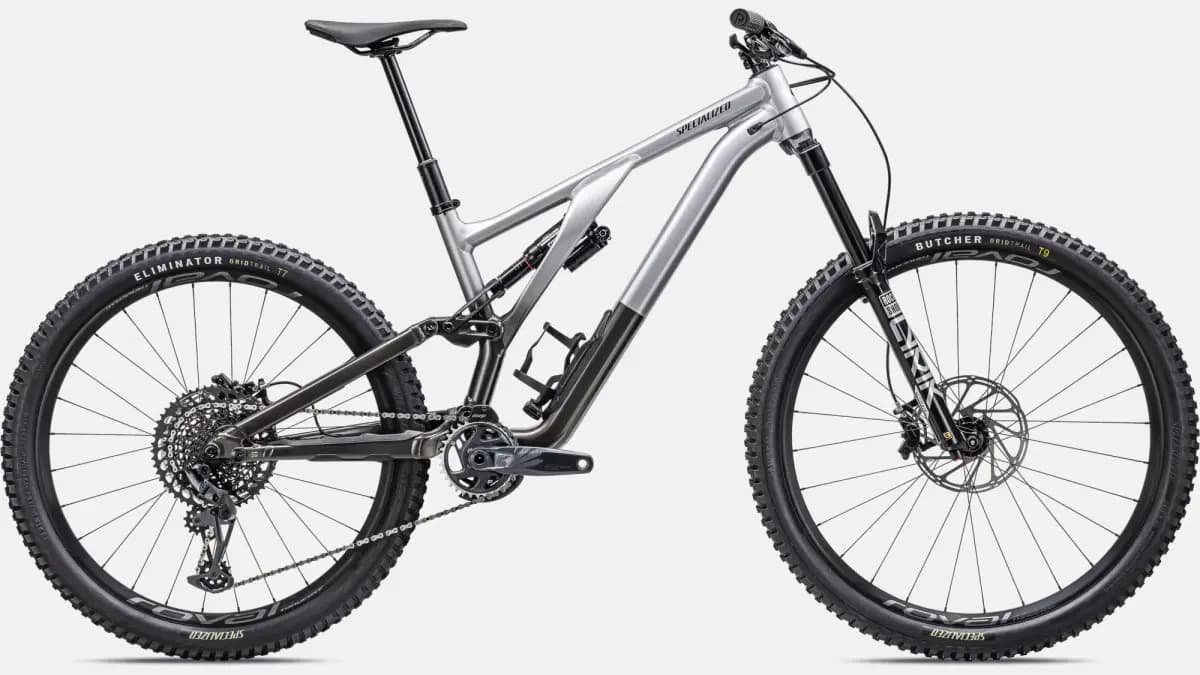

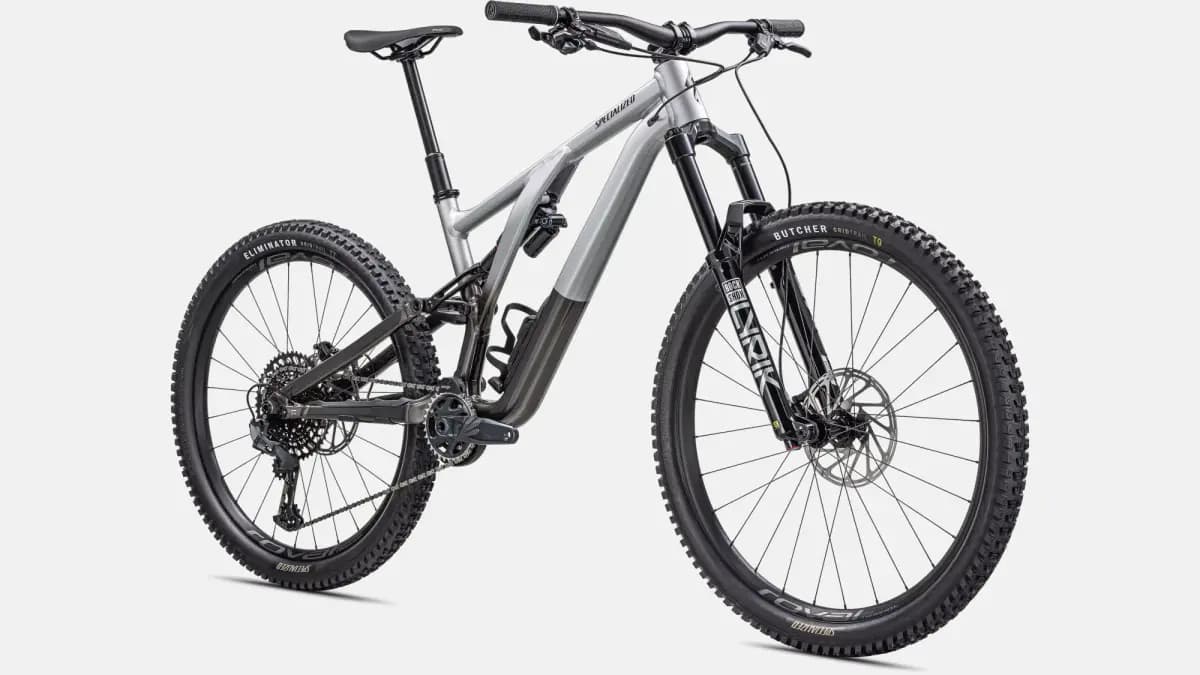

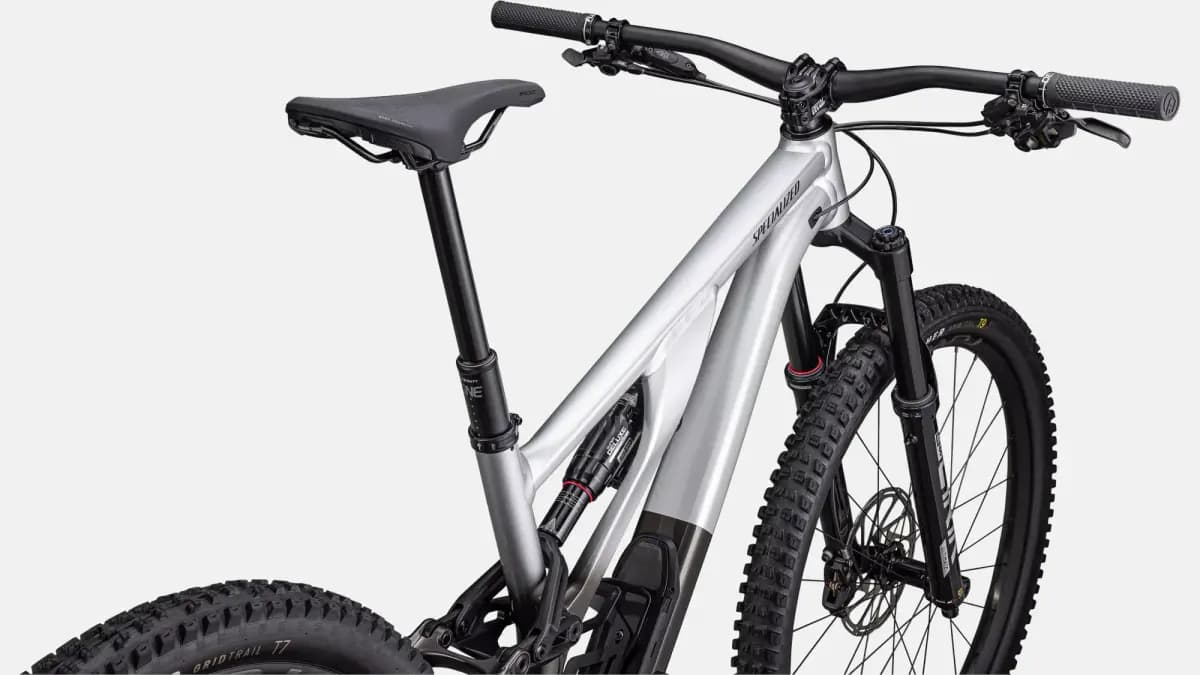

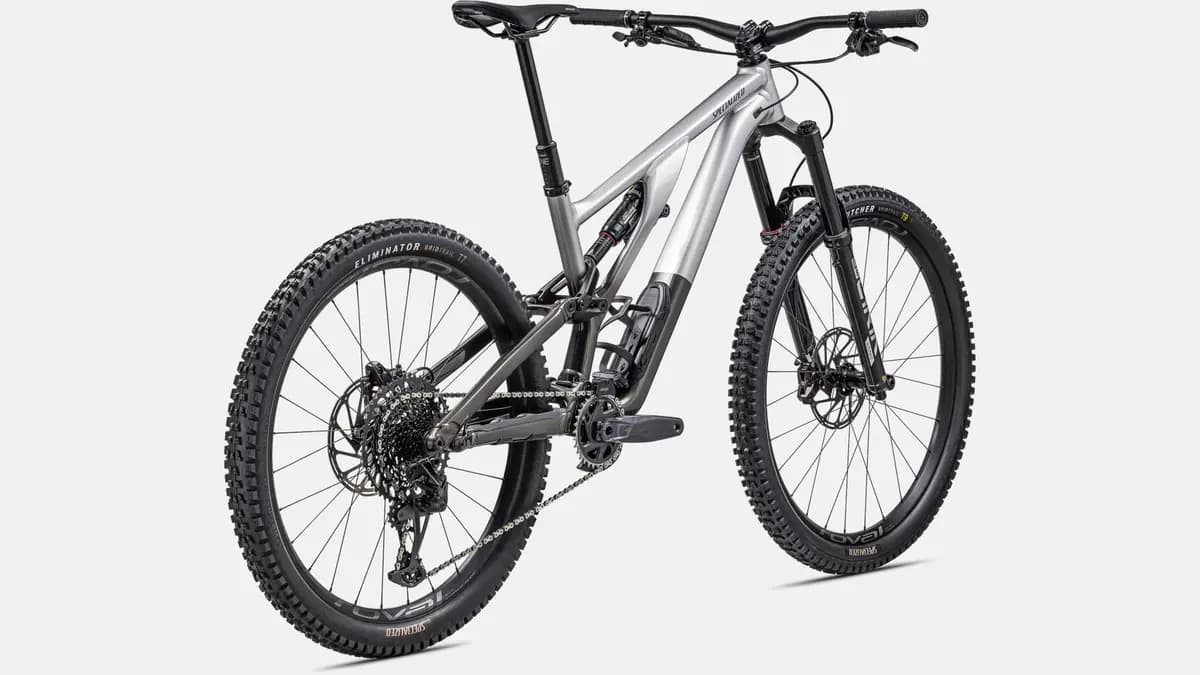

Specialized Stumpjumper EVO Elite Alloy - SRAM GX Eagle, RockShox Ultimate [M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWATâ„¢

About this item

• Frame: M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWATâ„¢ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of trave
• Seat Binder: Alloy, 38.6mm
• Rear Shock: Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm
• Fork: RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

Let's get something clear, the Stumpjumper EVO Alloy isn't a ""normal"" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance tuned travel, the adaptability of S-Sizing, and SWAT™ Door integration—in a lightweight yet tough M5 Alloy chassis, you're going to be able to bomb down trails that you thought you couldn't touch without a full-blown DH rig.

Specifications

Frame

M5 Alloy chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry with S-Sizing, SWATâ„¢ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of trave

Seat Binder

Alloy, 38.6mm

SKU

fd-03f573a37e49

Rear Shock

Rock Shox Super Deluxe Ultimate, Rx Trail Tune,RC2T Damper, Hydraulic Bottom Out control , S1:210x50mm, S2-S6:210x55mm

Fork

RockShox Lyrik Ultimate, Charger 3 RC2 W/ButterCups, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel

SKU

fd-03f573a37e49

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Centerline

SKU

fd-03f573a37e49

Shift Levers

SRAM GX, trigger, 12-speed

Rear Derailleur

SRAM GX Eagle, 12-speed

Cassette

Sram XG-1275, 12-speed, 10-52t

Chain

SRAM GX Eagle, 12-speed

Crankset

SRAM GX Eagle Alloy, DUB, 165/170/175mm, 32t

Chainrings

32T

Bottom Bracket

SRAM DUB, BSA 73mm, Threaded

SKU

fd-03f573a37e49

Rims

Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready

Front Hub

Roval, sealed cartridge bearings, 15x110mm spacing, 28h

Rear Hub

Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Spokes

DT Swiss Competition Race

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"

Inner Tubes

Standard, Presta Valve

SKU

fd-03f573a37e49

Stem

Deity, 35.0mm

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

Grips

Deity Lockjaw Grips

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

SeatPost

OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

SKU

fd-03f573a37e49

Weight

15.55kg (34 lb, 4.5 oz)

Weight Size

S4

SKU

fd-03f573a37e49
