Specifications

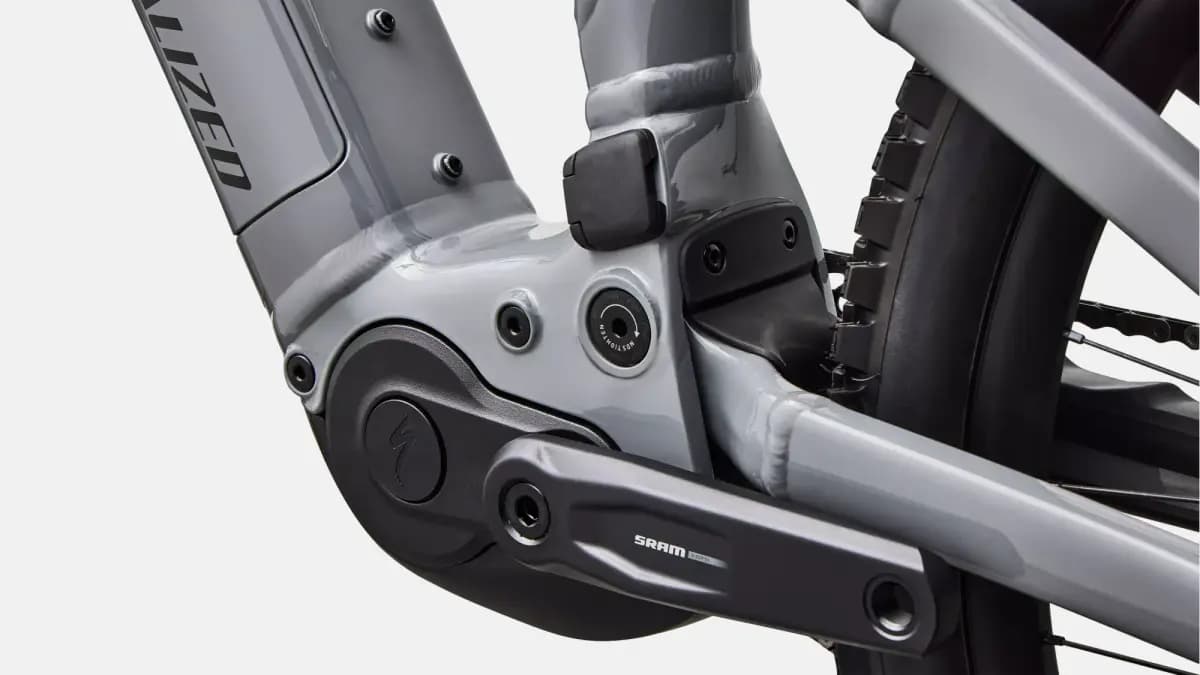

- Motor
- Specialized 3.1 Motor, 105Nm torque, 810W power
- Battery
- 840Wh battery

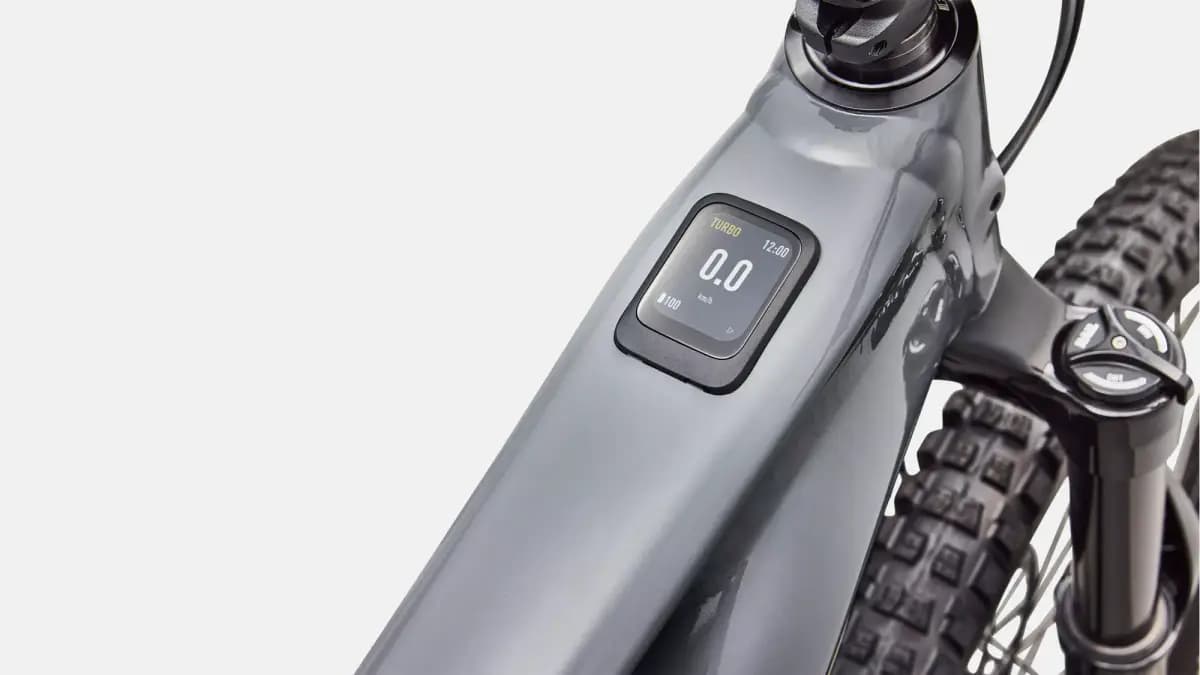

- UI/Remote
- Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
- Charger
- Specialized 4amp charger
- SKU
- fd-8789f4dc79f4
- Frame
- Levo 4 alloy frame, 150mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
- Seat Binder
- Alloy, 38.6mm
- SKU
- fd-8789f4dc79f4

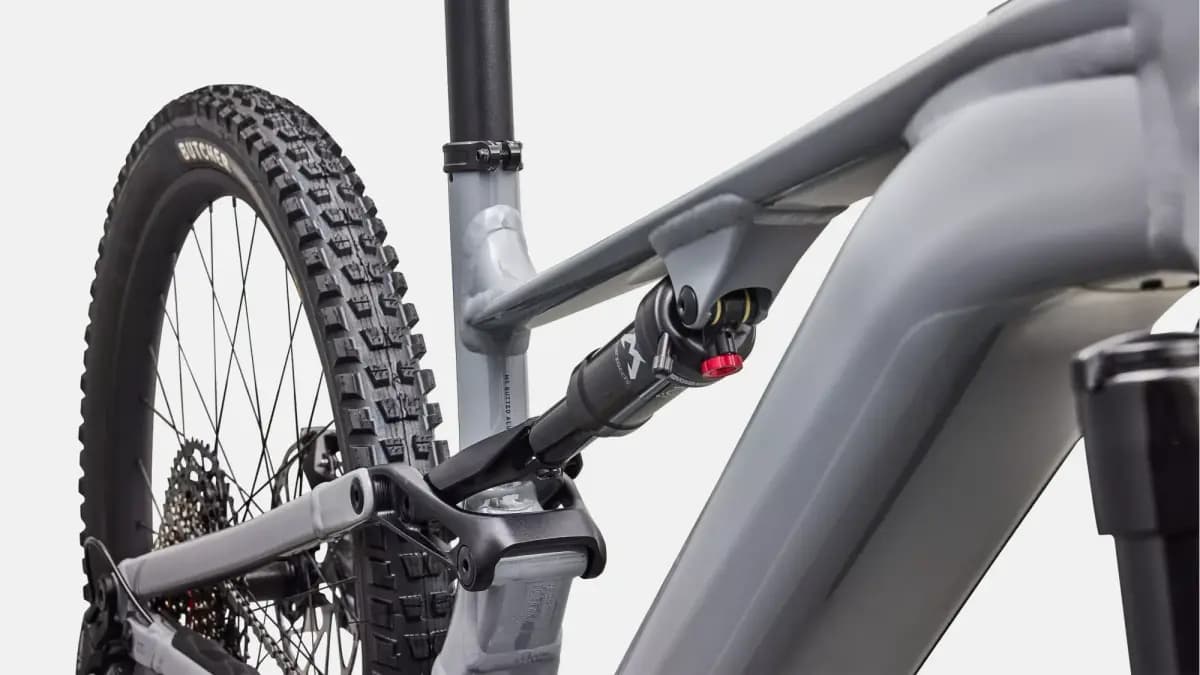

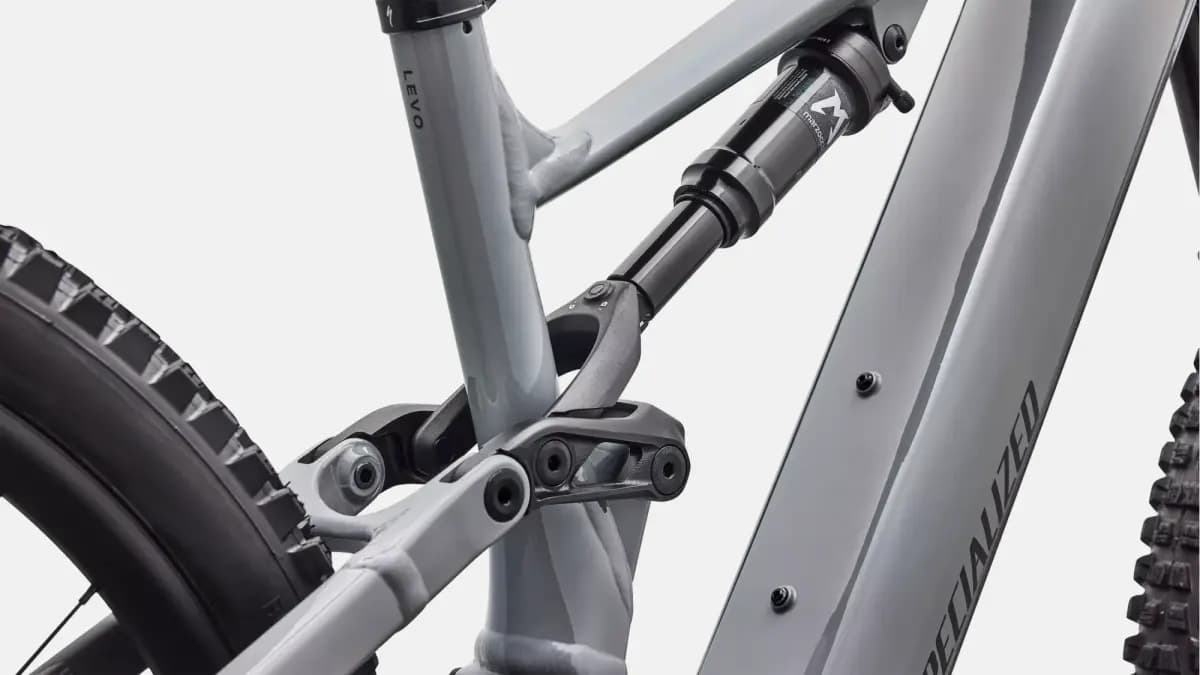

- Rear Shock
- Marzocchi Bomber Inline, Evol LV air sleeve, rebound adjust
- Fork
- Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression
- SKU
- fd-8789f4dc79f4
- Front Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
- Rear Brake
- SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm rotor
- SKU
- fd-8789f4dc79f4
- Shift Levers
- SRAM Eagle 70 T-Type, single click with MMX
- Rear Derailleur
- SRAM Eagle 70 Transmission, 12-speed, easy shift under load
- Cassette
- SRAM 12-speed,10-52t
- Chain
- SRAM 70 Transmission 12-Speed Flattop Chain
- Crankset
- SRAM S1000 Alloy crank, ISIS interface, 155mm length
- Chainrings
- SRAM 34t T-Type chainring, 104 BCD, steel
- SKU
- fd-8789f4dc79f4
- Rims
- Specialized, hookless alloy, 30mm inner width, tubeless ready
- Front Hub
- Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h
- Rear Hub
- Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12x148mm thru-axle, 32h, HG Steel Fhb
- Spokes
- DT Swiss Elemental
- Front Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
- Rear Tire
- Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4
- Inner Tubes
- Standard, Presta Valve
- SKU
- fd-8789f4dc79f4
- Stem
- Alloy Trail Stem, 35mm bar bore

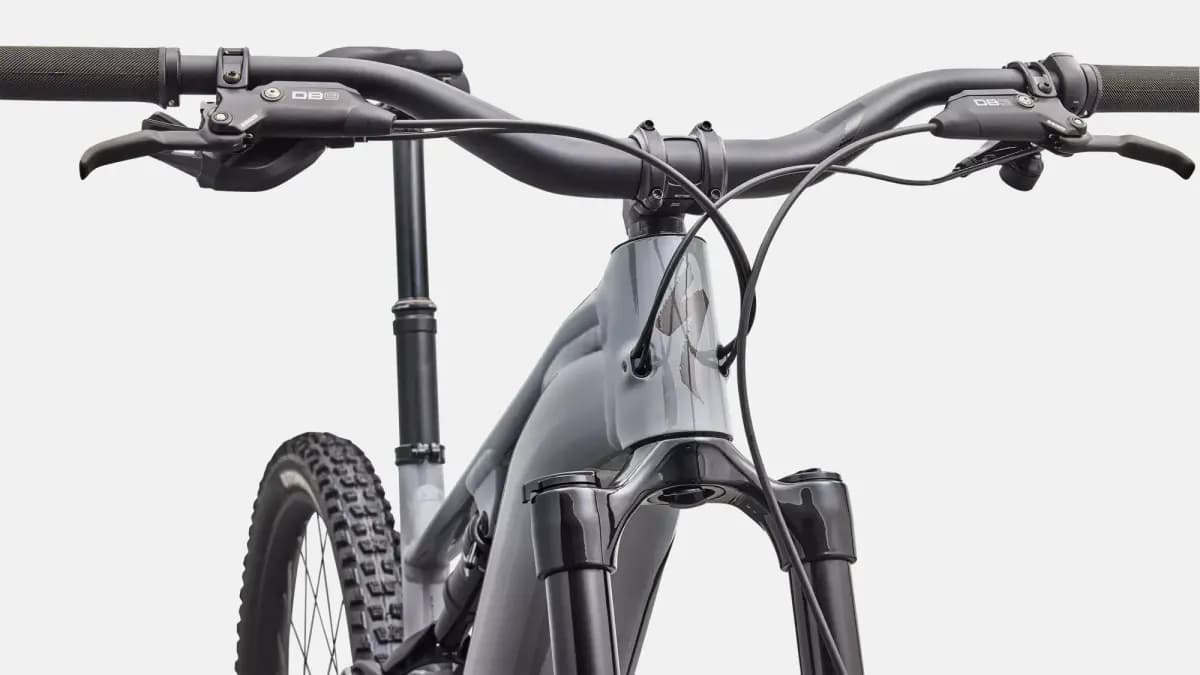

- Handlebars
- Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
- Grips
- Specialized Trail Grips
- Saddle
- Body Geometry Bridge Saddle, steel rails
- SeatPost
- TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4: 170mm, S5-S6: 200mm
- SKU
- fd-8789f4dc79f4
- SWAT
- SWAT Internal downtube storage
- SKU
- fd-8789f4dc79f4
- Product ID
- 263412
- Compliance Certification
- As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
- SKU
- fd-8789f4dc79f4
- Weight
- 26.0 kg (57 lb, 5.1 oz)
- Weight Size
- S4
