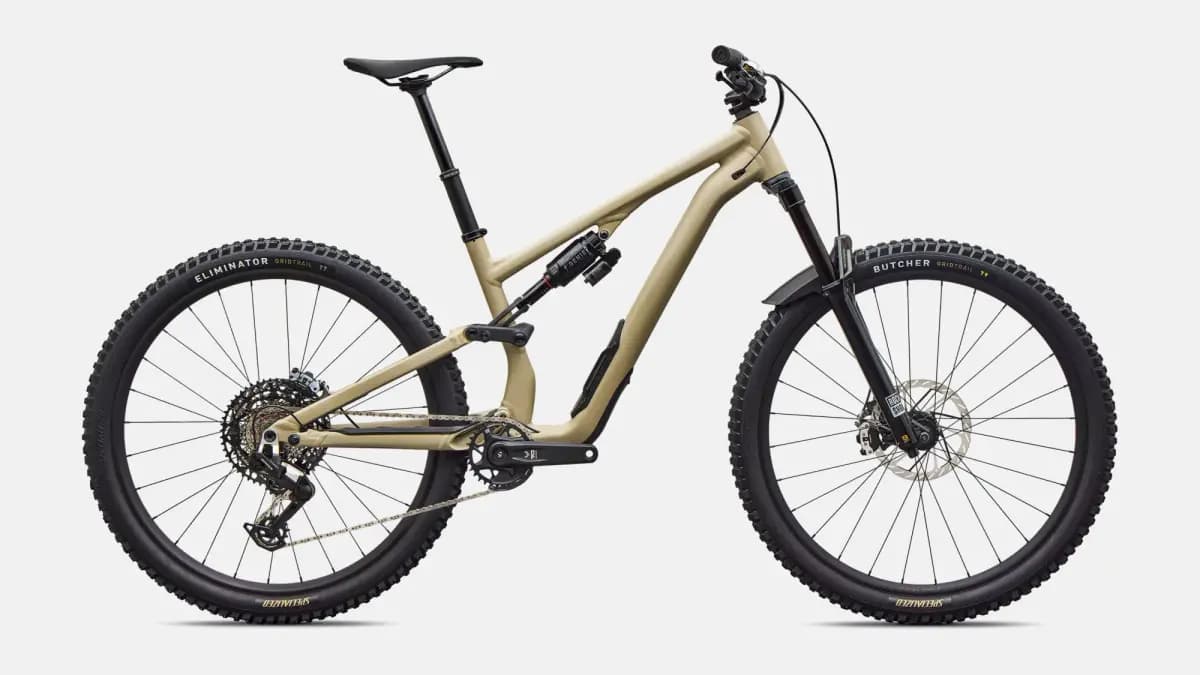

Specialized Stumpjumper 15 EVO Elite Alloy [M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, threaded BB, internal cable rou

About this item

• Frame: M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
• Seat Binder: Alloy, 38.6mm
• SWAT: SWAT 4.0 internal downtube storage
• Fork: All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6)

Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters—you? Check, check, check.

Specifications

Frame

M5 alloy chassis and rear-end, Trail Geometry, SWATâ„¢ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel

Seat Binder

Alloy, 38.6mm

SWAT

SWAT 4.0 internal downtube storage

SKU

fd-62cf98895e14

Fork

All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6)

Rear Shock

All New Rockshox Super Deluxe Select GENIE, GENIE adjustable airspring, rebound adjust, 210x55mm

SKU

fd-62cf98895e14

Front Brake

SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor

Rear Brake

SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor

SKU

fd-62cf98895e14

Shift Levers

SRAM 90 trigger, 12-speed, single click

Rear Derailleur

SRAM Eagle 90 T-Type

Cassette

SRAM 12-speed,10-52t

Chain

SRAM GX Eagle Transmission 12-Speed Flattop Chain

Crankset

SRAM Eagle 90, S1-S3: 165mm, S4-S6: 170mm, 55mm chainline, 32T

Bottom Bracket

SRAM DUB Threaded Wide

SKU

fd-62cf98895e14

Front Tire

Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4

Front Wheel

Roval Traverse Rim 29", hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes

Rear Tire

Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"

Rear Wheel

Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3:-S6: 29"

Inner Tubes

Standard, Presta Valve

SKU

fd-62cf98895e14

Stem

Specialized, 35mm Clamp, 35mm Reach

Handlebars

Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise

Grips

Deity Supracush, Lock On, 34mm OD, 133mm Length, Black

Saddle

Bridge Comp, Hollow Cr-mo rails 155/143

Seatpost

Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

SKU

fd-62cf98895e14

Product ID

263531

SKU

fd-62cf98895e14

Weight

16.79 kg (37 lb, 0.2 oz)

Weight Size

S4

SKU

fd-62cf98895e14
